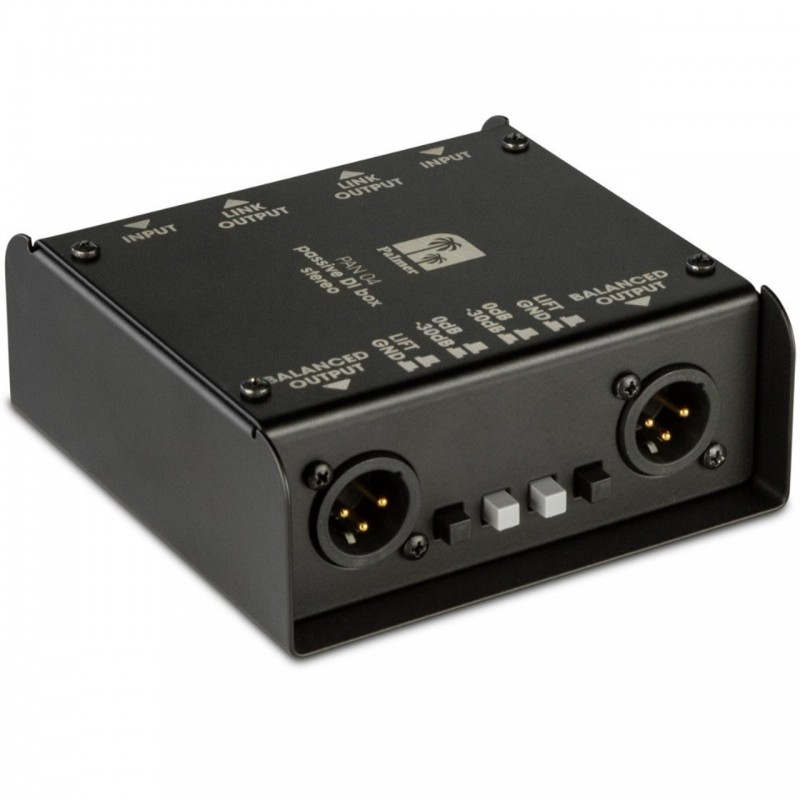

The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo"" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell THRU output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
...Read More
The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This „stereo"" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell THRU output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
| Product type | DI Boxes |
| Type | passive |
| Channels | 2 |
| Inputs | 2 |
| Input connectors | 6.3 mm jack |
| Max. input level | + 54 dBu |
| Input impedance | 60 k Ohm(s) |
| Input pad | 0 / -30 dB |
| Outputs | 2 |
| THRU outputs/channel | 1 |
| Output connectors | 6.3 mm jack |
| Output connectors | XLR |
| Max. output level | + 4 dBu |
| Output impedance | 600 Ohm(s) |
| Frequency response | 10 - 40.000 |
| Transformer balanced | Yes |
| Ratio | 10 : 1 |
| Controls | attenuation |
| Controls | ground lift |
| Cabinet material | sheet steel |
| Cabinet surface | Powder coated |
| Width | 110 mm |
| Depth | 110 mm |
| Height | 45 mm |
| Weight | 0.419 kg |
